Pipe Grooving Machines

• Accuracy
• Grooving depth adjustable +/- 0.2 mm

• Color
• Red & Black

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 760 x 570 x 900 mm

• Drive
• Hydraulic Drive

• Features
• Quick Change Roller, Heavy Duty Frame, Mobility Wheels, Safety Switch

• Frame Type
• Welded Steel Frame

• Frequency
• 50/60 Hz

• Lubricating System
• Manual Lubrication

• Machine Type
• Hydraulic Pipe Grooving

• Model No

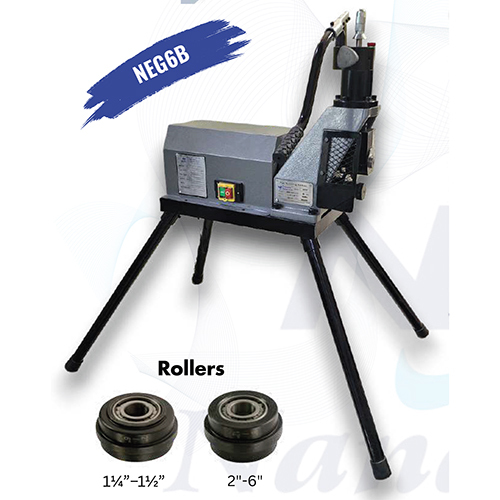

• NEG6B

• Motor Power
• 1.5 HP

• Noise Level
• <75 dB

• Operating Temperature
• 5C to 40C

• Operating Type
• Other, Semi-Automatic

• Power
• 1500 W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic, Max up to 30 MPa

• Product Type
• Other, Hydraulic Roll Pipe Grooving Machine

• Production Capacity
• 60-80 pipes per hour

• Surface Treatment
• Other, Paint Coated

• Technology
• Other, Hydraulic Roll Grooving

• Usage & Applications
• Pipe End Grooving for Fire Protection, HVAC, and Plumbing Industries

• Voltage
• 220V / 380V

• Weight (kg)
• 120 kg

• Accuracy
• 0.2 mm

• Color
• Blue / Silver

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• 550 x 320 x 420 mm

• Drive
• Electric Motor Drive

• Features
• Portable, sturdy construction, fast operation, easy-to-use interface

• Frame Type
• Heavy-Duty Steel Frame

• Frequency
• 50 Hz

• Lubricating System
• Manual Lubrication

• Machine Type
• Pipe Grooving

• Model No

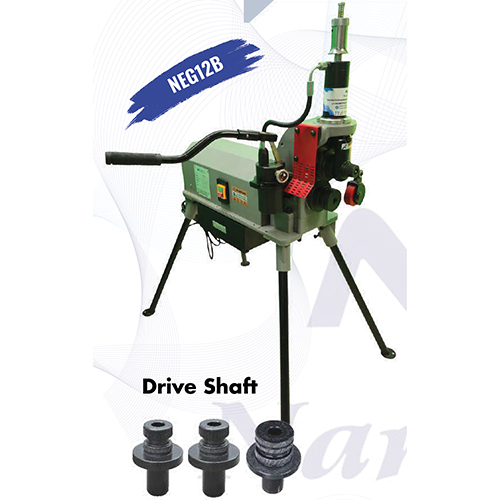

• NEG12B

• Motor Power
• 1.2 kW

• Noise Level
• 70 dB

• Operating Temperature
• 0C to 45C

• Plastic Processed
• Not applicable (for metal pipes)

• Power
• 1200 W

• Power Rating
• 1.5 HP

• Power Source
• Other, Electric

• Pressure
• Max. 12 Ton

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Up to 60 Pipes/Hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Cold Grooving Technology

• Usage & Applications
• For making grooves in metal pipes, suitable for HVAC, fire fighting, and plumbing installations

• Voltage
• 220 V

• Weight (kg)
• 90 kg

• Accuracy
• 0.1 mm

• Color
• Blue & Silver

• Connectivity Options
• Manual

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 650 x 400 x 900 mm

• Drive
• Electric Motor Driven

• Features
• Robust structure, High durability, Easy operation

• Frame Type
• Heavy Duty Steel

• Frequency
• 50/60 Hz

• Lubricating System
• Oil Bath

• Machine Type
• Grooving Machine

• Model No
• NEG8D

• Motor Power
• 1.5 HP

• Noise Level
• <75 dB

• Operating Temperature
• 0-45C

• Operating Type
• Automatic

• Power
• 1500 W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Hydraulic

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Up to 40 Pipes/Hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Conventional

• Usage & Applications
• For grooving pipes in fire protection, HVAC, and plumbing industries

• Voltage
• 220 V / 380 V

• Weight (kg)
• 110 kg

• Accuracy
• 0.1 mm

• Color
• Grey & Blue

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 520 x 310 x 400 mm

• Drive
• Geared Motor Drive

• Features
• Portable, Stable Performance, High Efficiency

• Frame Type
• Reinforced Steel Frame

• Frequency
• 50Hz

• Lubricating System
• Grease Lubrication

• Machine Type
• Pipe End Grooving

• Model No
• NEG12A

• Motor Power
• 1.2 KW

• Noise Level
• <75 dB

• Operating Temperature
• 0-45C

• Power
• 1200W

• Power Rating
• 1.2 kW

• Power Source
• Other, Electric

• Pressure
• Max. 120KN

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Up to 20 pipes/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Advanced Electric Driven

• Usage & Applications
• Pipe end grooving for fire protection, HVAC, and plumbing installation

• Voltage
• 220V / 50Hz

• Weight (kg)
• 36 kg

• Accuracy
• 0.1 mm

• Color
• Red & Grey

• Cooling System
• Air-cooled

• Dimension (L*W*H)
• 760500360 mm

• Drive
• Electric Motor

• Features
• Portable, robust, easy to operate

• Frame Type
• Heavy-duty steel frame

• Frequency
• 50 Hz

• Lubricating System
• Grease Lubrication

• Machine Type
• Grooving Machine

• Model No
• NEG12C

• Motor Power
• 1.5 kW

• Noise Level
• < 75 dB

• Operating Temperature
• 5C to 45C

• Power
• 1500W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Max 12 tons

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Up to 300 pipes/day

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Cold Forming

• Usage & Applications
• For grooving steel, galvanized, and stainless steel pipes

• Voltage
• 220V/50Hz

• Weight (kg)
• 76 kg

• Accuracy
• High Precision Groove Formation

• Color
• Red / Black

• Connectivity Options
• No connectivity (standalone)

• Cooling System
• Air cooled

• Dimension (L*W*H)
• 650 x 365 x 465 mm

• Drive
• Direct Drive

• Features
• Portable, Heavy-duty design, Quick Change Rollers

• Frame Type
• Sturdy, Welded Steel Frame

• Frequency
• 50 Hz

• Lubricating System
• Manual Lubrication

• Machine Type
• Pipe Grooving

• Model No
• NEG12L

• Motor Power
• 1.5 HP

• Noise Level
• Low

• Operating Temperature
• 0C to 45C

• Operating Type
• Other, Semi-Automatic

• Power
• 1500 W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Manual Clamping

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• High Duty, suitable for frequent use

• Surface Treatment
• Other, Powder Coated / Painted

• Technology
• Other, Electric Motor Driven

• Usage & Applications
• Grooving pipes for mechanical, fire protection, plumbing, and HVAC installations

• Voltage
• 220 V

• Weight (kg)
• 62 kg

• Accuracy
• 0.2 mm

• Color
• Blue & Black

• Cooling System
• Air-Cooled

• Dimension (L*W*H)
• 780 x 350 x 380 mm

• Drive
• Chain Drive

• Features
• Durable, High Efficiency, Portable

• Frame Type
• Heavy Duty Steel

• Frequency
• 50 Hz

• Lubricating System
• Manual Grease

• Machine Type
• Pipe Grooving

• Model No
• NEG24A

• Motor Power
• 1.5 HP

• Noise Level
• <75 dB

• Operating Temperature
• 0C - 45C

• Power
• 1200 W

• Power Rating
• 1200W

• Power Source
• Other, Electric

• Pressure
• 24 MPa

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Up to 100 pipes/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Advanced Motorised

• Usage & Applications
• For grooving metal pipes in plumbing & fire-fighting systems

• Voltage
• 220 V

• Weight (kg)
• 75 kg

• Accuracy
• High precision, suitable for pipe mating/fitting

• Color
• Red & Silver

• Connectivity Options
• No digital connectivity

• Cooling System
• Air cooled

• Dimension (L*W*H)
• 570 x 410 x 420 mm

• Drive
• Gear drive

• Features
• Portable, robust structure, fast grooving, easy operation

• Frame Type
• Heavy-duty cast iron

• Frequency
• 50 Hz

• Lubricating System
• Grease Lubrication

• Machine Type
• Pipe Grooving

• Model No
• NEG16B

• Motor Power
• 1.5 kW

• Noise Level
• Low

• Operating Temperature
• 0C to 40C

• Power
• 1500W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• Continuous

• Surface Treatment
• Other, Painted Finish

• Technology
• Other, Mechanical Automation

• Usage & Applications
• Grooving of steel, galvanized, and copper pipes

• Voltage
• 220V

• Weight (kg)
• 75 kg

• Accuracy
• 0.1 mm

• Color
• Red And Silver

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• 760 x 580 x 940 mm

• Drive
• Gear Drive

• Features
• Robust construction, portable design, quick setup

• Frame Type
• Heavy Duty Steel

• Frequency
• 50 Hz

• Lubricating System
• Manual Greasing

• Machine Type
• Pipe Grooving Machine

• Model No
• PGM-1500E

• Motor Power
• 1.5 HP

• Noise Level
• < 75 dB

• Operating Temperature
• 5C to 40C

• Power
• 1500 W

• Power Rating
• 1.5 kW

• Power Source
• Other, Electric

• Pressure
• Manual pressure control

• Product Type
• Other, Pipe Grooving Machine

• Production Capacity
• 8-12 pipes/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Cold Forming Grooving

• Usage & Applications
• Grooving metallic pipes for fire fighting, HVAC, and plumbing systems

• Voltage
• 220 V

• Warranty
• yes

• Weight (kg)
• 94 kg
